Thermal Paper, Label Rolls / Bond Rolls.

We are experts at printing on paper and make the best thermal paper as well.

At Fantec Bags we are a "One Stop Factory," that is equipped with the latest automatic machinery, so we can be proficient when supplying kraft paper, non-woven, rpet, non-woven, cotton tote/ recycled, canvas, foldable nylon/polyester, jute, backpacks, waterproof, bags, thermal paper, and packaging. Exporting worldwide.

How carbonless paper works:

How carbon-less paper works:

This process was implemented back in 1952, by chemist Lowell Schleicher, Barry Green, working for the NCR Corporation as a biodegradable, stain-free alternative. It was also called No Carbon Required paper.

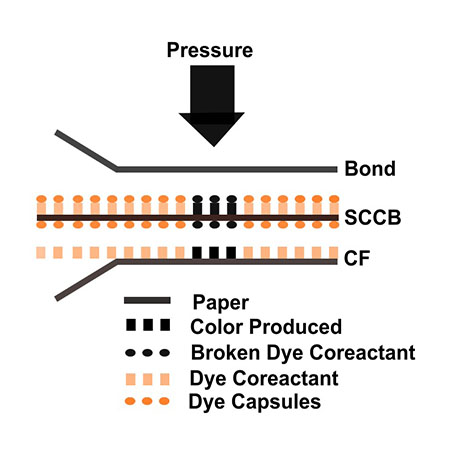

With carbon-less paper, the copy is produced by a chemical reaction between two different coatings generally applied to the front and back of a base paper, caused by pressure, typewriter, dot-matrix printers, or writing instruments.

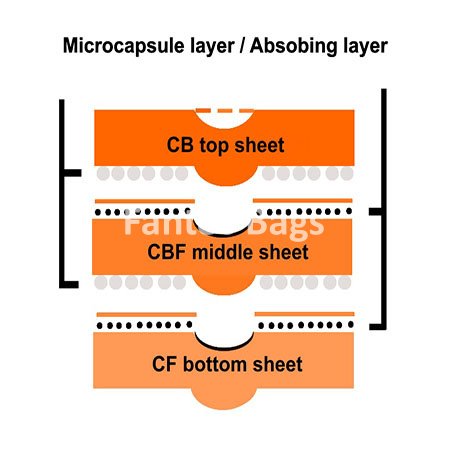

The first upper-most layer, (CB) coated back consist of micro capsules containing colorless, but color-producing substance. When mechanical pressure is on these capsules, they burst a color-producing substance absorbed by the second layer (CF) coated front.

This CF layer consists of a substance that is reactive and also combines with a color release substance to produce the copy.

In the case of form sets with more than two sheets, another type of form sheet is required as a central page, which receives the copy and also passes it on the CFB, coated front and back.

Must be in the correct sequence CB, CFB, CF.

Multi sheet system:

Self-contained.

For some applications, we can supply a paper that carries the color-producing substance micro-capsules, the color receivers in a single layer when pressure is applied.

For these reasons, self-contained (SC), can be combined with un-coated standard paper, as the upper top page.

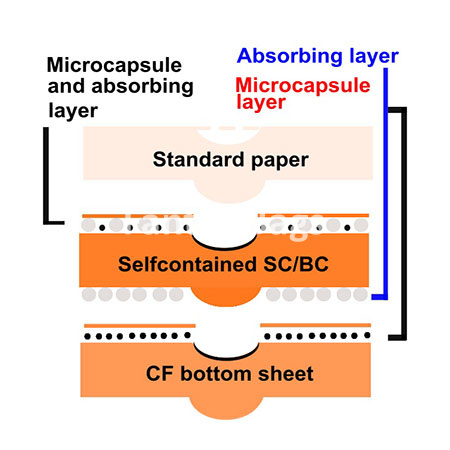

If more than one copy required, then self-contained (SC/CB) paper is used.

If other than one copy is required, then self-contained (SC/BC) paper is then used.

Self-contained SB/CB has another color-producing layer of ink- releasing micro-capsules on the back, which produces copies on subsequent central and back pages.

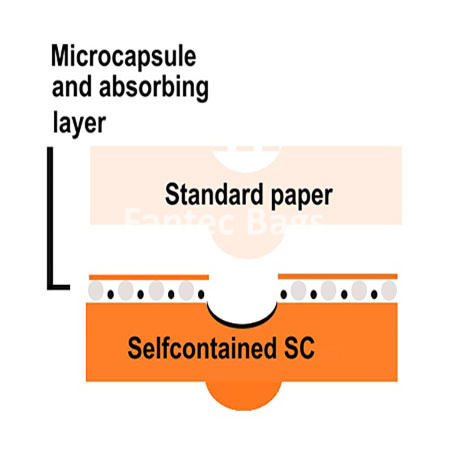

Self-contained SC:

Self-contained SC/CB:

The micro-capsules contained in the SC layer burst under pressure when writing. Thus releases reaction fluid on the surrounded pigments. The color reaction takes place within this same layer.

On the front, this functions in the same way as SC. The extra layer of capsules on the back release reaction fluid onto the next middle sheet or bottom sheet.

Self-contained SC/CB:

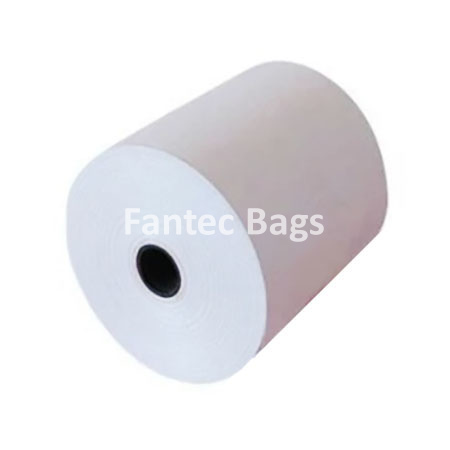

76mm x 70mm x 13mm: Bond Paper, Single-Ply Cash Register Rolls.

It is different from thermal paper, as the single-ply, must be used with cash registers receipt printers and they have an ink ribbon.

Epson approved single ply, premium quality for sharp image, single copy, with no bleed.

The standard gsm, is 60gsm, 70gsm, 80gsm, bond paper quality.

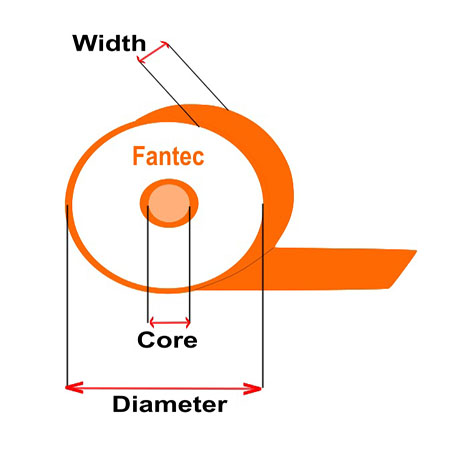

Paper width: 76mm
Roll diameter: 70mm
Paper length: 45m depends on the thickness
Paper type: Bond / non-thermal
Core 12mm/13mm x 17mm plastic
50: rolls per carton
70,000 rolls per 20 FCL
Based on 45m length rolls and 70gsm
Image black
Single-ply
Coating no
White color
Roll width 76mm
Outer roll diameter of 70mm
Weight 70gsm

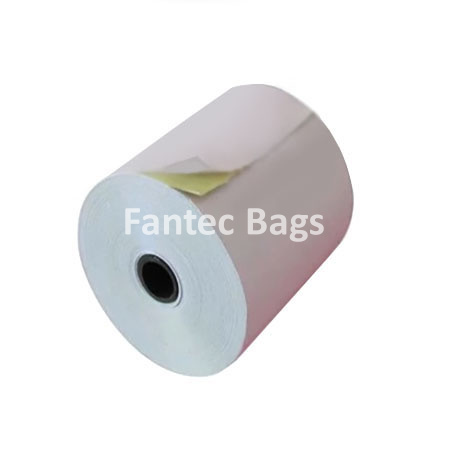

76mm x 70mm x 13mm: Carbonless Paper Roll 2 Ply.

Carbonless Paper Rolls 2 Ply, Receipt paper rolls, used in POS printers and credit card devices. Epson, Axiohm, Citizen, Hypercom, CBM, VeriFone, IBM sure-one, NCR, Star Micronics, and many other devices.

They print black images on the upper layer and blue on the bottom layer paper.

Most commonly used in the Pharmaceuticals industry, retail, and logistics.

Paper width: 76mm
Roll diameter: 70mm
Paper length: 30m
Paper type: Thermal
Core 12mm/13mm x 17mm plastic
50: rolls per carton
70,000 rolls per 20 FCL
Based on 30m length rolls and 50gsm
Image black and blue
Single-ply
Coating outside
White color
Roll width 76mm
Outer roll diameter of 70mm
Weight 50gsm
3-year image life

76mm x 70mm x 13mm: Carbonless Paper Roll 3 Ply.

Carbonless Paper Roll 3 Ply, Receipt paper rolls, used in POS printers and credit card devices. Epson, Axiohm, Citizen, Hypercom, CBM, VeriFone, IBM sure-one, NCR, Star Micronics, and many other devices.

They print a black image on the upper layer and blue on the bottom layer paper. A copy obtained by the customer and businesses can also keep a copy for their accounting.

Most commonly used in pharmaceutical industries, catering, leisure, and hotels, etc.

The standard gsm, is 45gsm, 48gsm, 50gsm, 52gsm, carbonless, copy paper.

Paper width: 76mm
Roll diameter: 70mm
Paper length: 22m
Paper type: Carbonless non-thermal
Core 12mm/13mm x 17mm plastic
50: rolls per carton
70,000 rolls per 20 FCL
Based on 22m length rolls and 50gsm
Image black and blue
Single-ply
Coating outside
White color and Yellow
Roll width 76mm
Outer roll diameter of 70mm
Weight 50gsm
3-year image life

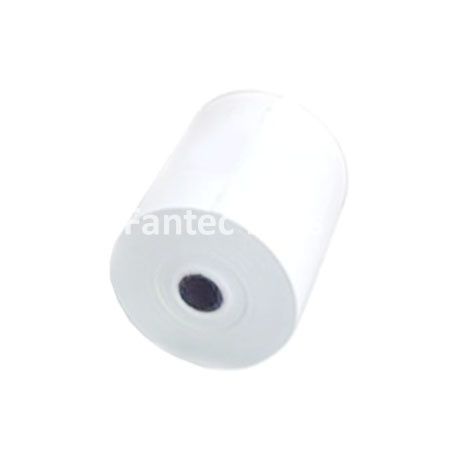

57mm x 57mm x 13mm: Self-Carbonized, Self-contained Paper Roll.

It’s a Self-carbonized paper roll, that is well known as a Self-contained paper roll, made from carbon-less paper on both layers. Showing a blue image on both layers, and used for Dot Matrix receipt paper and has no ribbon.

The (NCR) paper is a special kind of paper, with a unique coating, which creates a self-contained (SC), NCR sheet of paper.

It’s made, with both capsules and receiver coating on the same side of the single sheet. Thus, any sheet of paper can be a pressure image, and the SC sheet beneath will reproduce the image.

The standard gsm is 45gsm, 48gsm, 50gsm, Self-Carbonized paper.

Paper width: 57mm
Roll diameter: 57mm
Paper length: 24m
Paper type: Self Carbonized non-thermal
Core 12mm x 17mm plastic
100: rolls per carton
195,000 rolls per 20 FCL
Based on 24m length rolls and 50gsm
Image black and blue
2-ply
Coating outside
White color and Yellow
Roll width 57mm
Outer roll diameter of 57mm
Weight 50gsm
3-year image life minimum
